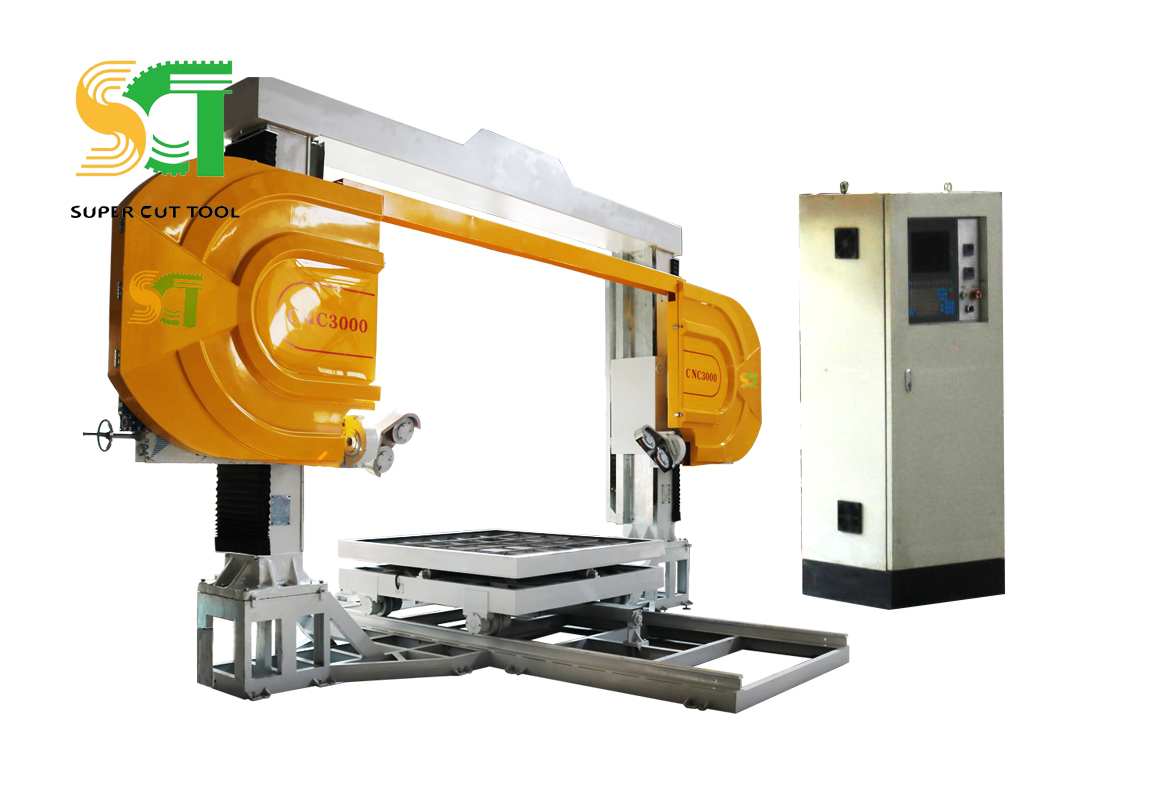

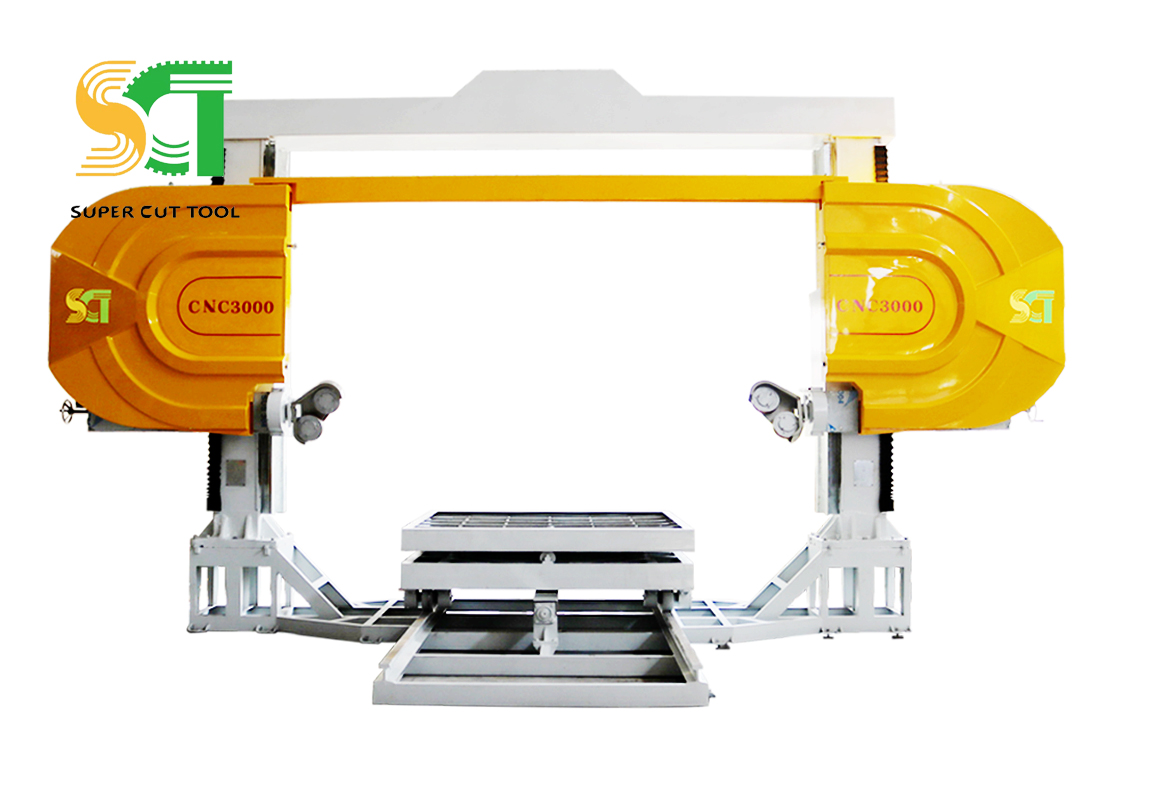

CNC diamond wire saw cutting machine
Product features:
The CNC wire saw adopts a single wire saw design, which can be used for blocks cutting and squaring, and processing of special-shaped stones.With CNC numerical control, it can cut stones at any angle.
There is no restriction on cutting stone, almost all natural stone on the market can be cut.
High-efficiency cutting speed makes stone processing more efficient.
Polish&Drill
+ ![CNC diamond wire saw cutting machine CNC diamond wire saw cutting machine](/uploads/200605/wire-saw-machine.jpg)
Product description:
Model:SCT-CNC 2000/2500/3000It adopts CNC control, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1, separate guide rail system, flywheel through the rail to rise and fall.
2, sable working of flywheel ensures he service life of the machine.
3, sable tension of flywheel and the constant flexible ensure the accuracy of cutting.
4, CNC man-machine interface makes the operation easier.
5, The machine has the cutting diversity to do complex processes and 2 faces different size process.
6, Four guide wheels are equipped with rubber ring, which greatly improves the accuracy of cutting. According to different cutting requirements to adjust the line cutting speed. Protective cover is waterproof and durable.
Model | Unit | SCTSJ-2000 | SCTSJ-2500 | SCTSJ-3000 |
Max. process size | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
Working table size | mm | 2500*1300 | ||
Wire length | mm | 13000 | 14000 | 15000 |
Wire diameter | mm | 7.6-11 | ||
Cutting linear speed | m/s | 25-45 | ||
Main motor power | kw | 11 | ||
Water consumption | M³/h | 2 | 3 | 4 |
Overall dimension | mm | 6300*6500*4000 | 6300*7000*4000 | 6300*7500*4000 |
Approximate weight | kg | 5300 | 6200 | 6800 |
