Multi saw segments&multiblade segments
Product features:
1.Good sharpness, stable performance and long lifespan performance.2.Good cutting result with smooth cutting, flat surface and even size.
3.Narrow cutting gap that stone waste reduction.
4.Easy for diamond opening.
5.Highly cost-effective.
Cutting
Polish&Drill
+
Mining
Machines

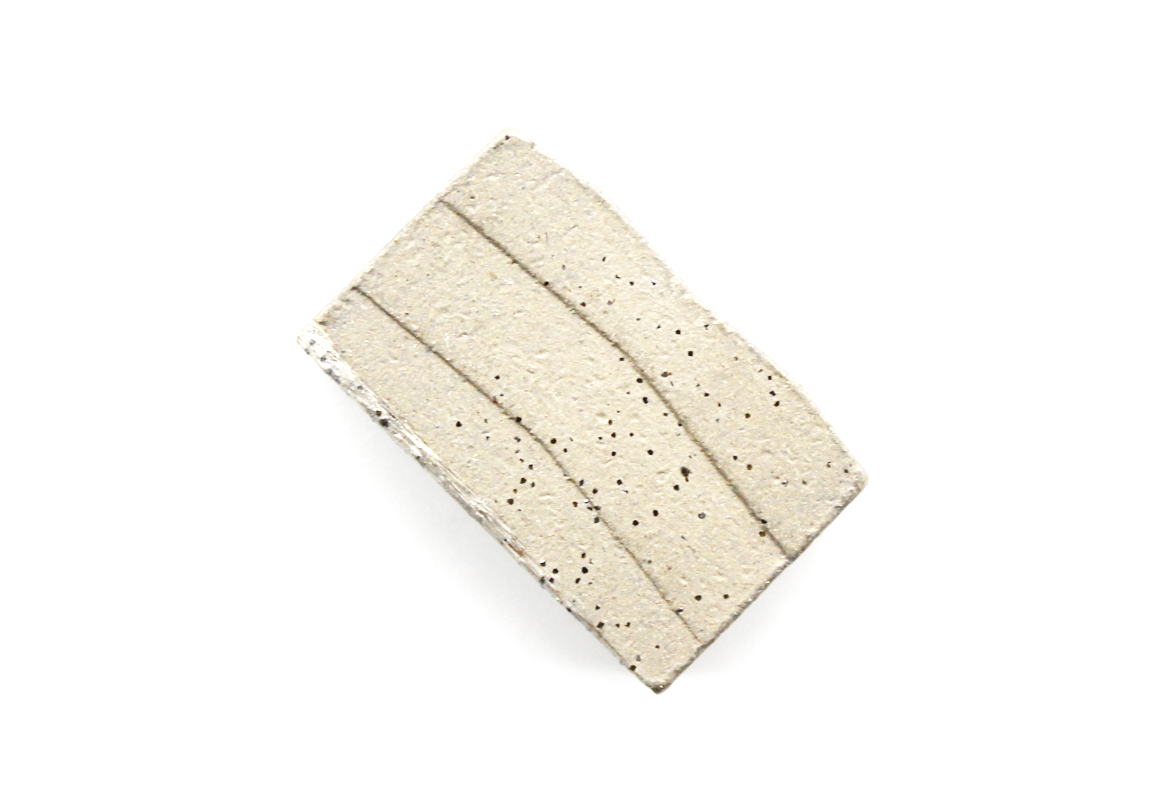

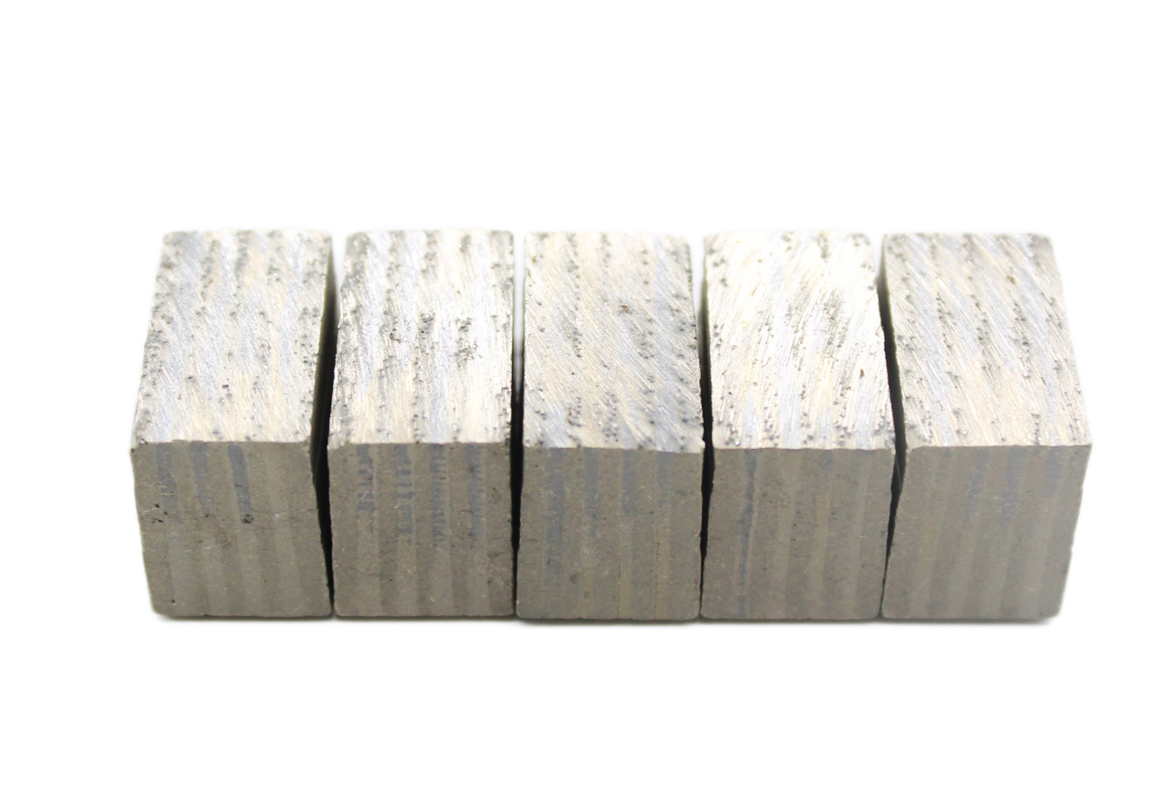

1:Multiblade ( same diameter blade combination cutting) segment
Product application

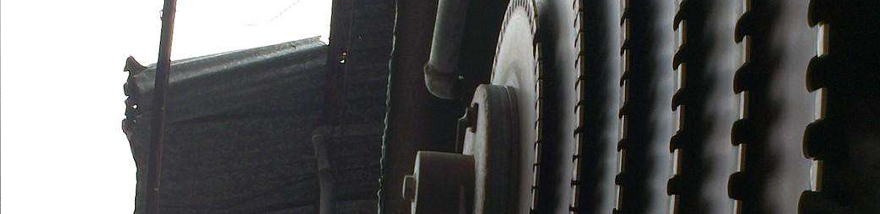

Segment for Multiblade block cutting.Product Description
| Product name | Multi Blade Segment |
| Use for | Granite |
| Segment shape | Trapezoid, K/M/etc. |
| Segment sharp | Sandwich, Layer, etc. |
| Supply Ability | 6,000,000 Pcs/Month |
| Factory | More than 17 years’ experience |
| Delivery time | 7~15 days after payment received. |
Product Specifications
| Saw blade Diameter(mm) | Steel Core Thickness(mm) | Segment Dimension(mm) | Segment Number(pcs) |
| 1000 | 5 | 24×7.0/6.2×13(15,20) | 70 |
| 1200 | 5.5 | 24×7.4/6.6×13(15,20) | 80 |
| 1400 | 6.5 | 24×8.4/7.6×13(15,20) | 92 |
| 1600 | 7.2 | 24×9.2/8.4×13(15,20) | 108 |

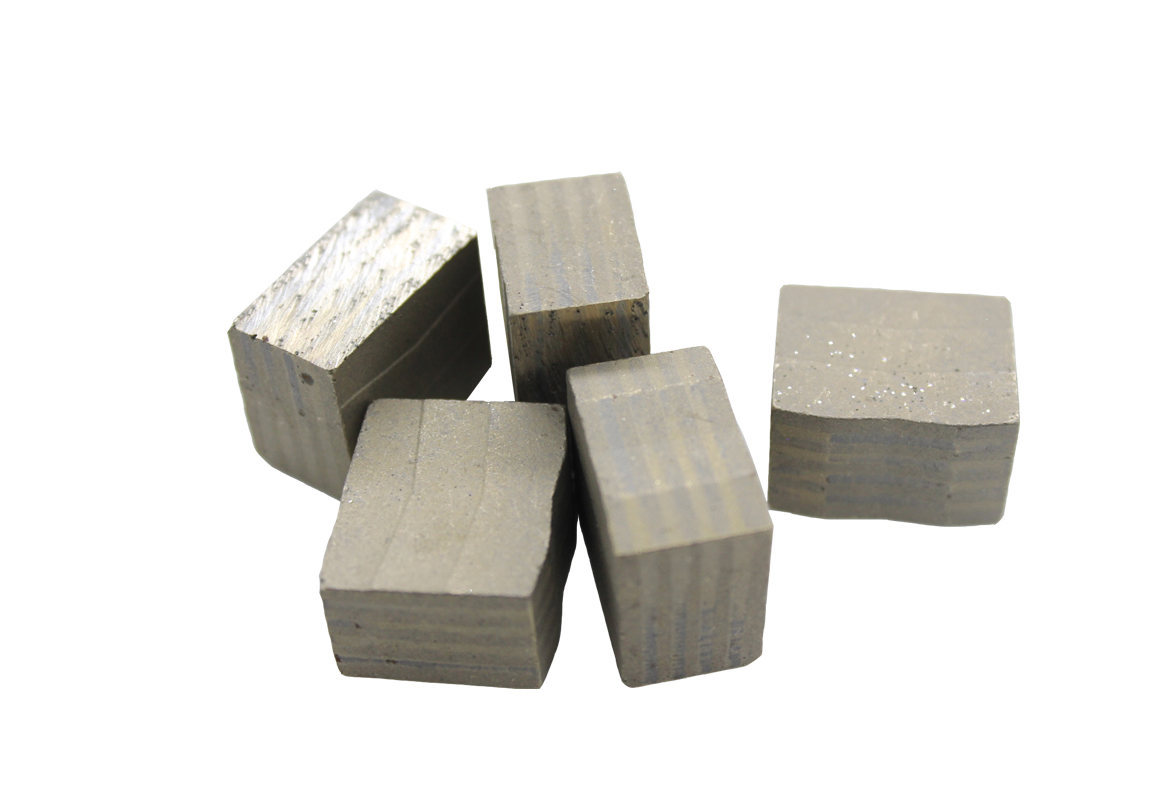

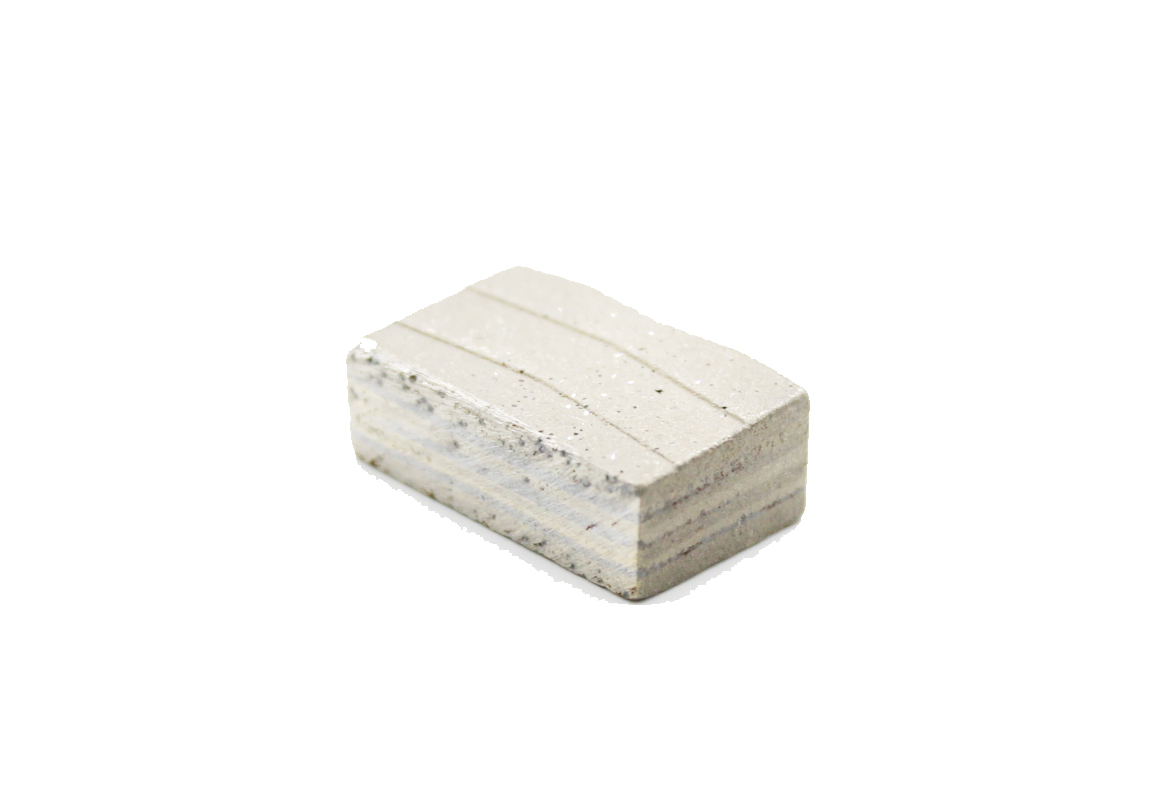

2:Multiblade ( different diameter blade combination cutting) segment
Product application
Segment for Multiblade block cutting. This combined cutting method can meet the cutting of larger size stone, especially for saw blades diameter more than 1800mm, such as 2000mm, 2200mm, 2500mm or 3000mm, they can process larger block to have the larger slabs, it can better meet the different needs of stone processing. The segments change size according to the blank blade thicknes.Product Description
| Product name | Multi Blade Segment |
| Use for: | Granite |
| Segment shape | Trapezoid, K/M/etc. |
| Sandwich, Layer, etc. | Segment sharp |
| Supply Ability | 6,000,000 Pcs/Month |
| Factory | More than 17 years’ experience |
| Delivery time | 7~15 days after payment received. |
Product Specifications
| Saw blade Diameter (mm) | Steel Core Thickness(mm) | Segment Dimension(mm) |
| 600-2000 | 5 | 24×7.0/6.2×13(15,20) |
| 530-2800 | 5.5 | 24×7.4/6.6×13(15,20) |
| 460-2800 | 6.5 | 24×8.4/7.6×13(15,20) |
| 460-3000 | 7.2 | 24×9.2/8.4×13(15,20) |
For detail blade combination please see follows table.
| Max.diameter blade(mm) | blade combination(pcs) | Saw blade Diameter(mm) | Steel Core Thickness(mm) | Segment Dimension(mm) |
| 3000 | 7P | 3000 | 7.2 | 160 |
| 2600 | 7.2 | 140 | ||
| 2200 | 7.2 | 132 | ||
| 1800 | 7.2 | 120 | ||
| 1400 | 7.2 | 96 | ||
| 1040 | 7.2 | 92 | ||
| 680 | 7.2 | 80 | ||
| 5P | 3000 | 7.2 | 160 | |
| 2500 | 7.2 | 140 | ||
| 2000 | 7.2 | 128 | ||
| 1500 | 7.2 | 96 | ||
| 1000 | 7.2 | 92 | ||
| 2800 | 12P | 2800 | 5.5 | 150 |
| 2600 | 5.5 | 140 | ||
| 2400 | 5.5 | 140 | ||
| 2200 | 5.5 | 132 | ||
| 2000 | 5.5 | 128 | ||
| 1800 | 5.5 | 120 | ||
| 1600 | 5.5 | 108 | ||
| 1370 | 5.5 | 96 | ||
| 1160 | 5.5 | 92 | ||
| 950 | 5.5 | 92 | ||
| 740 | 5.5 | 84 | ||
| 530 | 5.5 | 66 | ||
| 8P | 2800 | 7.2 | 150 | |
| 2500 | 7.2 | 140 | ||
| 2200 | 7.2 | 132 | ||
| 1900 | 7.2 | 128 | ||
| 1600 | 7.2 | 108 | ||
| 1300 | 7.2 | 96 | ||
| 1000 | 7.2 | 92 | ||
| 680 | 7.2 | 80 | ||
| 6P | 2800 | 5.5 | 150 | |
| 2400 | 5.5 | 140 | ||
| 2000 | 5.5 | 128 | ||
| 1600 | 5.5 | 108 | ||
| 1150 | 5.5 | 92 | ||
| 680 | 5.5 | 80 | ||
| 2500 | 10P | 2500 | 6.5 | 140 |
| 2300 | 6.5 | 132 | ||
| 2100 | 6.5 | 128 | ||
| 1900 | 6.5 | 120 | ||
| 1700 | 6.5 | 108 | ||
| 1500 | 6.5 | 96 | ||
| 1300 | 6.5 | 92 | ||
| 1100 | 6.5 | 92 | ||
| 900 | 6.5 | 90 | ||
| 600 | 6.5 | 72 | ||
| 5P | 2500 | 6.5 | 140 | |
| 2000 | 6.5 | 128 | ||
| 1600 | 6.5 | 108 | ||
| 1200 | 6.5 | 92 | ||
| 800 | 6.5 | 80 | ||
| 2200 | 9P | 2200 | 7.2 | 132 |
| 2000 | 7.2 | 128 | ||
| 1800 | 7.2 | 120 | ||
| 1600 | 7.2 | 108 | ||
| 1370 | 7.2 | 96 | ||
| 1160 | 7.2 | 92 | ||
| 950 | 7.2 | 92 | ||
| 740 | 7.2 | 84 | ||
| 530 | 7.2 | 66 | ||
| 9P | 2200 | 6.5 | 132 | |
| 2000 | 6.5 | 128 | ||
| 1800 | 6.5 | 120 | ||
| 1600 | 6.5 | 108 | ||
| 1370 | 6.5 | 96 | ||
| 1160 | 6.5 | 92 | ||
| 950 | 6.5 | 92 | ||
| 740 | 6.5 | 84 | ||
| 530 | 6.5 | 66 | ||
| 9P | 2200 | 5.5 | 132 | |
| 2000 | 5.5 | 128 | ||
| 1800 | 5.5 | 120 | ||
| 1600 | 5.5 | 108 | ||
| 1370 | 5.5 | 96 | ||
| 1160 | 5.5 | 92 | ||
| 950 | 5.5 | 92 | ||
| 740 | 5.5 | 84 | ||
| 530 | 5.5 | 66 | ||
| 5P | 2200 | 5.5 | 132 | |
| 1800 | 5.5 | 120 | ||
| 1400 | 5.5 | 96 | ||
| 1040 | 5.5 | 92 | ||
| 680 | 5.5 | 80 | ||
| 3P | 2200 | 7.2 | 132 | |
| 1600 | 7.2 | 108 | ||
| 950 | 7.2 | 92 | ||
| 2000 | 8P | 2000 | 6.5 | 128 |
| 1800 | 6.5 | 120 | ||
| 1600 | 6.5 | 108 | ||
| 1370 | 6.5 | 96 | ||
| 1160 | 6.5 | 92 | ||
| 950 | 6.5 | 92 | ||
| 740 | 6.5 | 84 | ||
| 530 | 6.5 | 66 | ||
| 8P | 2000 | 5 | 128 | |
| 1800 | 5 | 120 | ||
| 1600 | 5 | 108 | ||
| 1370 | 5 | 96 | ||
| 1160 | 5 | 92 | ||
| 950 | 5 | 92 | ||
| 750 | 5 | 88 | ||
| 600 | 5 | 72 | ||
| 4P | 2000 | 7.2 | 128 | |
| 1600 | 7.2 | 108 | ||
| 1140 | 7.2 | 92 | ||
| 680 | 7.2 | 80 | ||
| 3P | 2000 | 7.2 | 128 | |
| 1400 | 7.2 | 96 | ||
| 800 | 7.2 | 80 | ||
| 1800 | 7P | 1800 | 6.5 | 120 |
| 1600 | 6.5 | 108 | ||
| 1370 | 6.5 | 96 | ||
| 1160 | 6.5 | 92 | ||
| 950 | 6.5 | 92 | ||
| 740 | 6.5 | 84 | ||
| 530 | 6.5 | 66 | ||
| 7P | 1800 | 5.5 | 120 | |
| 1600 | 5.5 | 108 | ||
| 1370 | 5.5 | 96 | ||
| 1160 | 5.5 | 92 | ||
| 950 | 5.5 | 92 | ||
| 740 | 5.5 | 84 | ||
| 530 | 5.5 | 66 | ||
| 3P | 1800 | 7.2 | 120 | |
| 1300 | 7.2 | 96 | ||
| 800 | 7.2 | 80 | ||
| 1600 | 9P | 1600 | 7.2 | 108 |
| 1450 | 7.2 | 96 | ||
| 1300 | 7.2 | 96 | ||
| 1160 | 7.2 | 92 | ||
| 1020 | 7.2 | 92 | ||
| 900 | 7.2 | 92 | ||
| 750 | 7.2 | 84 | ||
| 600 | 7.2 | 72 | ||
| 460 | 7.2 | 56 | ||
| 9P | 1600 | 6.5 | 108 | |
| 1450 | 6.5 | 96 | ||
| 1300 | 6.5 | 96 | ||
| 1160 | 6.5 | 92 | ||
| 1020 | 6.5 | 92 | ||
| 900 | 6.5 | 92 | ||
| 750 | 6.5 | 84 | ||
| 600 | 6.5 | 72 | ||
| 460 | 6.5 | 56 | ||
| 9P | 1600 | 5.5 | 108 | |
| 1450 | 5.5 | 96 | ||
| 1300 | 5.5 | 96 | ||
| 1160 | 5.5 | 92 | ||
| 1020 | 5.5 | 92 | ||
| 900 | 5.5 | 92 | ||
| 750 | 5.5 | 84 | ||
| 600 | 5.5 | 72 | ||
| 460 | 5.5 | 56 | ||
| 6P | 1600 | 7.2 | 108 | |
| 1400 | 7.2 | 96 | ||
| 1160 | 7.2 | 92 | ||
| 950 | 7.2 | 92 | ||
| 750 | 7.2 | 84 | ||
| 550 | 7.2 | 66 |
