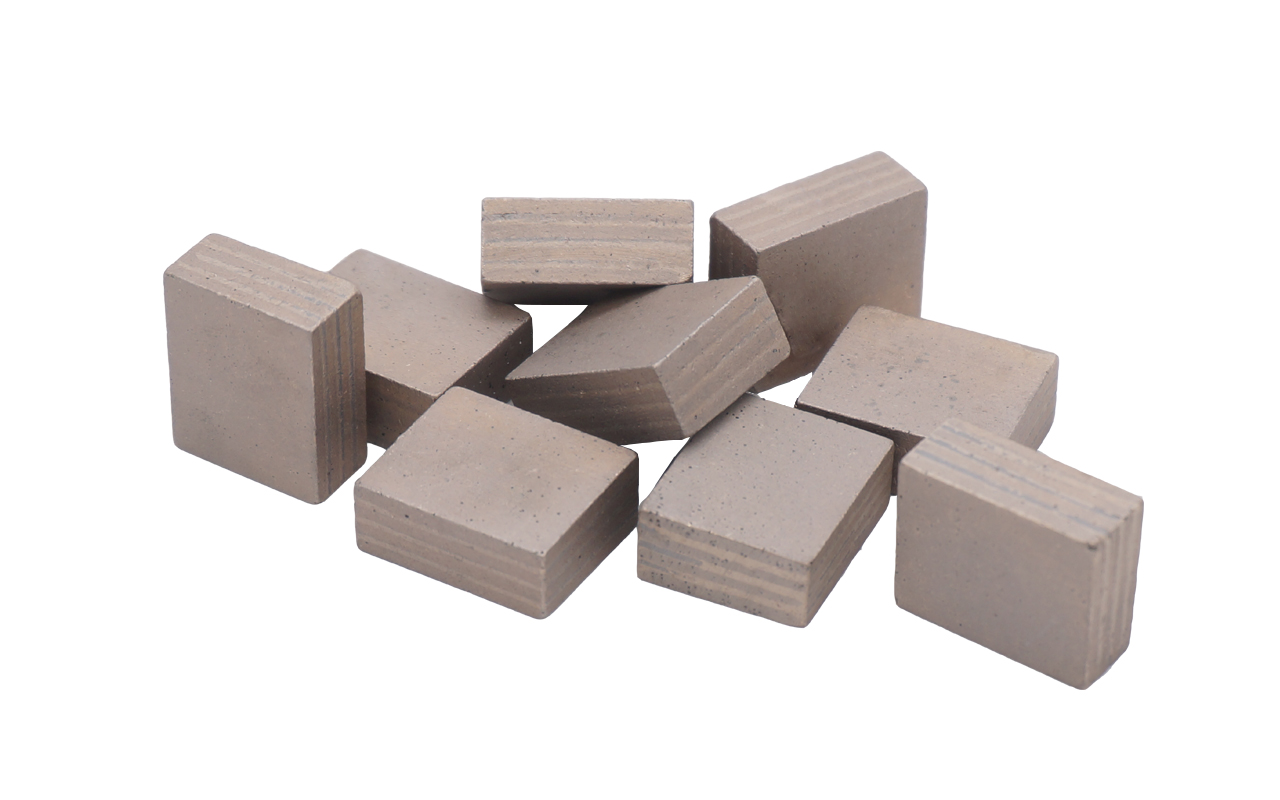

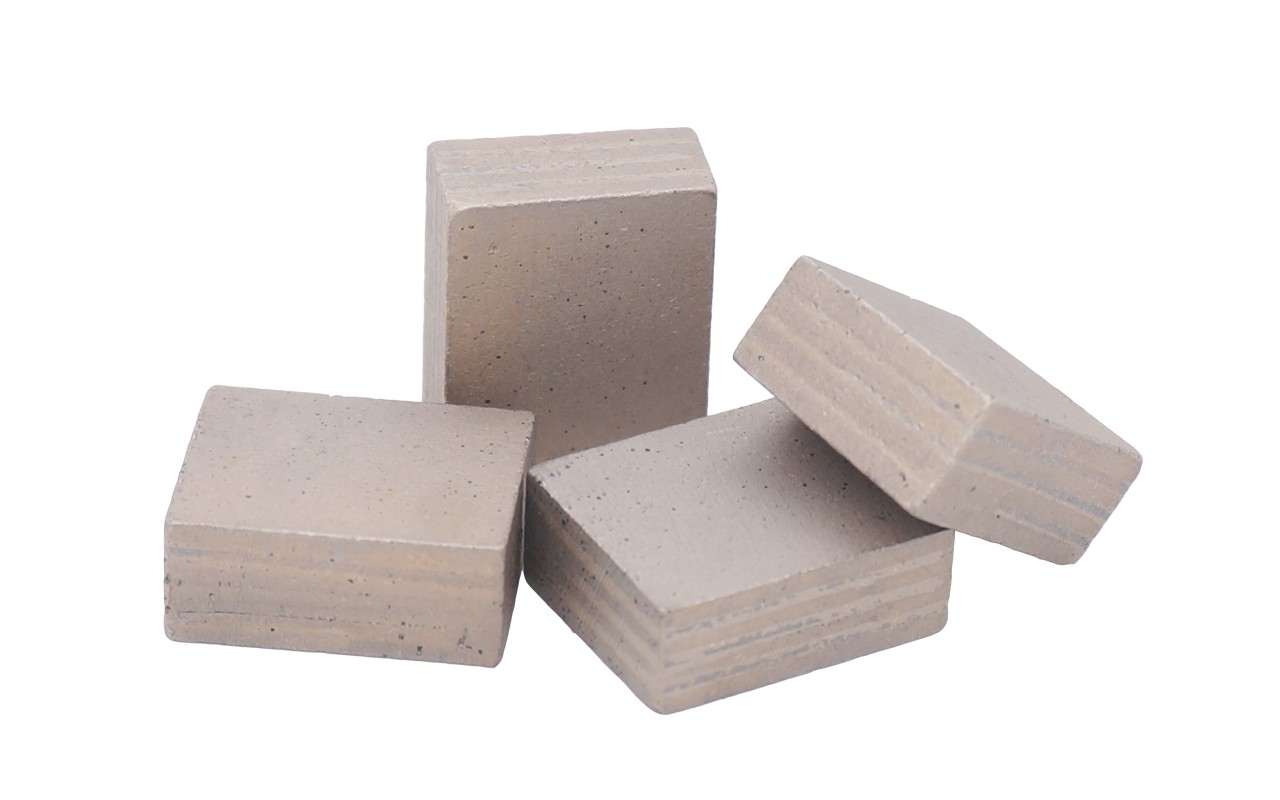

Diamond segments for quarry stone
Product features:
1: SCT segments for granite and other stone quarries have outstanding sharpness and lifespan.2: Quarrying segment is popular in Chinese domestic market with its lower cost for quarrying the stone block from mountain.
3: Good sharpness with lower cost is the main advantage of our quarry segment.
Cutting
Polish&Drill
+
Mining
Machines
Product description
1, Good Sharpness: speedy cutting, low current of the machine, mining blocks are square with good flat surface.
2, Long Life: Reducing the times of blanks re-welding, maximizing the lifespan of steel blanks, achieving high cutting linear meters and eventually saving the mining cost for the quarry mining owners.
3, Good Adaptability: Suitable for different stone and various complicated mining environments.
Specification:
Double-blades-Combinations: D2200/D3300, D2200/D3600, D2400/D3300, D2400/D3600.
|
Blank Saw blade thickness (MM) |
Saw blade Diameter (MM) |
Segment quantity (PCS) |
Segment Size (MM) |
| 9.5/10 | 2200 | 132 |
22*13.1/13.9*15 24*13.6/14.4*20 |
| 9.5/10 | 2400 | 136 |
22*13.1/13.9*15 24*13.6/14.4*20 |
| 9.5/10 | 3300 | 170 |
22*11.6/12.4*15 24*11.6/12.4*20 |
| 9.5/10 | 3600 | 180 |
22*11.6/12.4*15 24*11.6/12.4*20 |
Triple -Blade-Combinations: D2600/D3600/D4200,D2600/D3800/D4600, D2600/D3800/D4800
Detailed Parameters:
|
Blank Saw blade thickness (MM) |
Saw blade Diameter (MM) |
Segment quantity (PCS) |
Segment Size (MM) |
| 12 | 2600 | 142 |
22*15.6/16.4*15 24*15.6/16.4*20 |
| 12 | 3600 | 180 |
22*14.6/15.4*15 24*14.6/15.4*20 |
| 12 | 4200 | 210 |
22*13.6/14.4*15 24*13.6/14.4*20 |
|
Blank Saw blade thickness (MM) |
Saw blade Diameter (MM) |
Segment quantity (PCS) |
Segment Size (MM) |
| 12 | 2600 | 154 |
22*15.6/16.4*15 24*15.6/16.4*20 |
| 12 | 3800 | 190 |
22*14.6/15.4*15 24*14.6/15.4*20 |
| 12 | 4600 | 230 |
22*13.6/14.4*15 24*13.6/14.4*20 |
Other specifications on request available.
