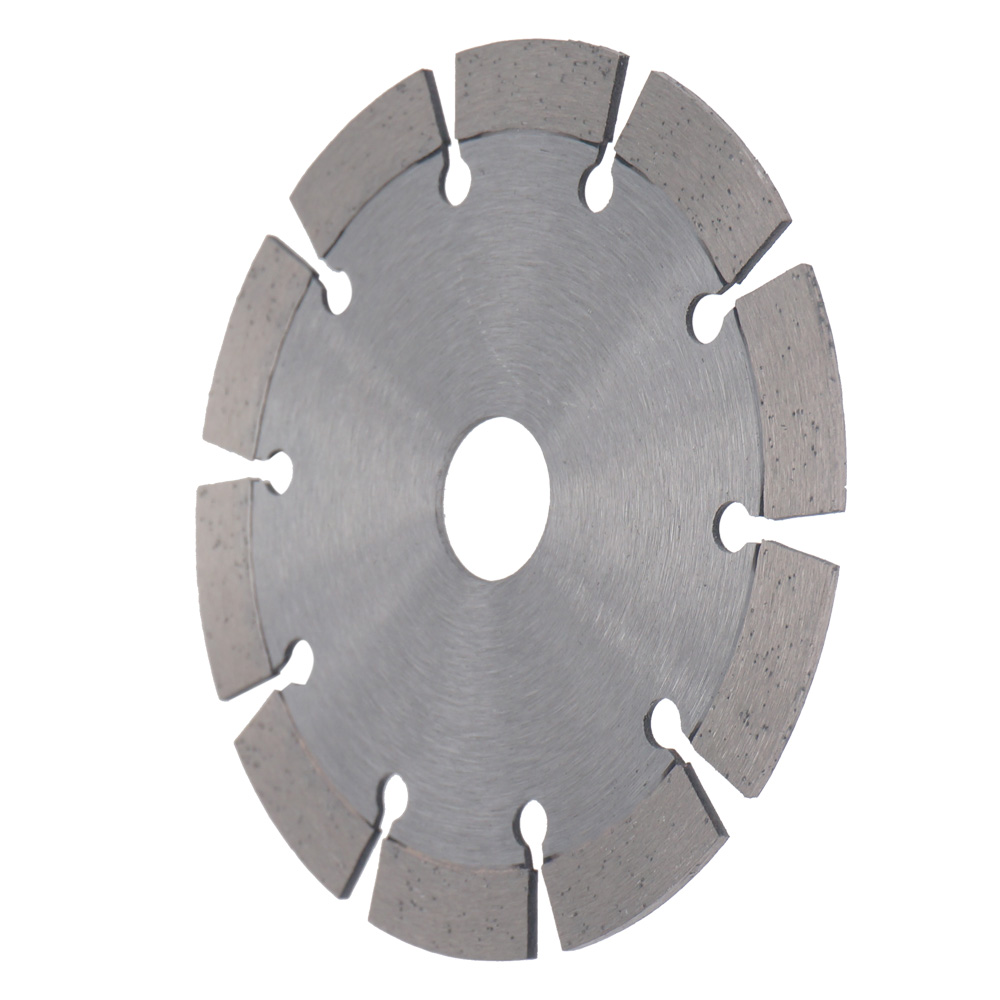

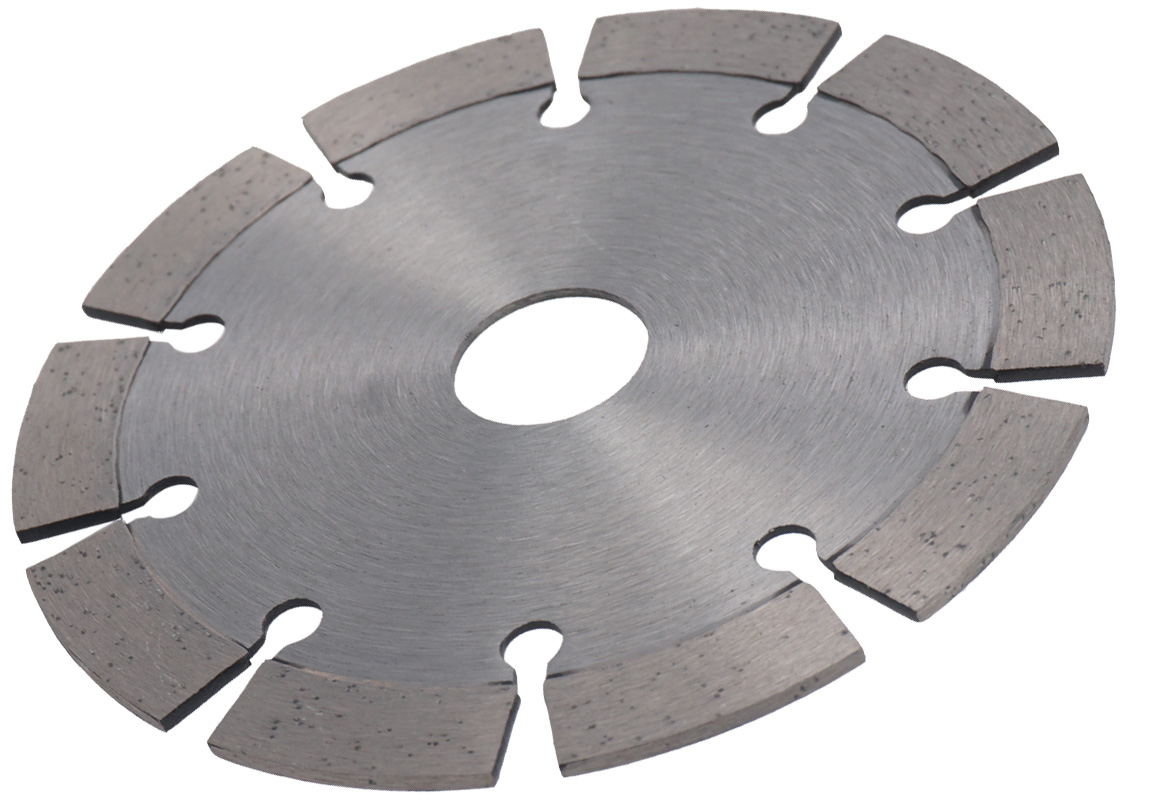

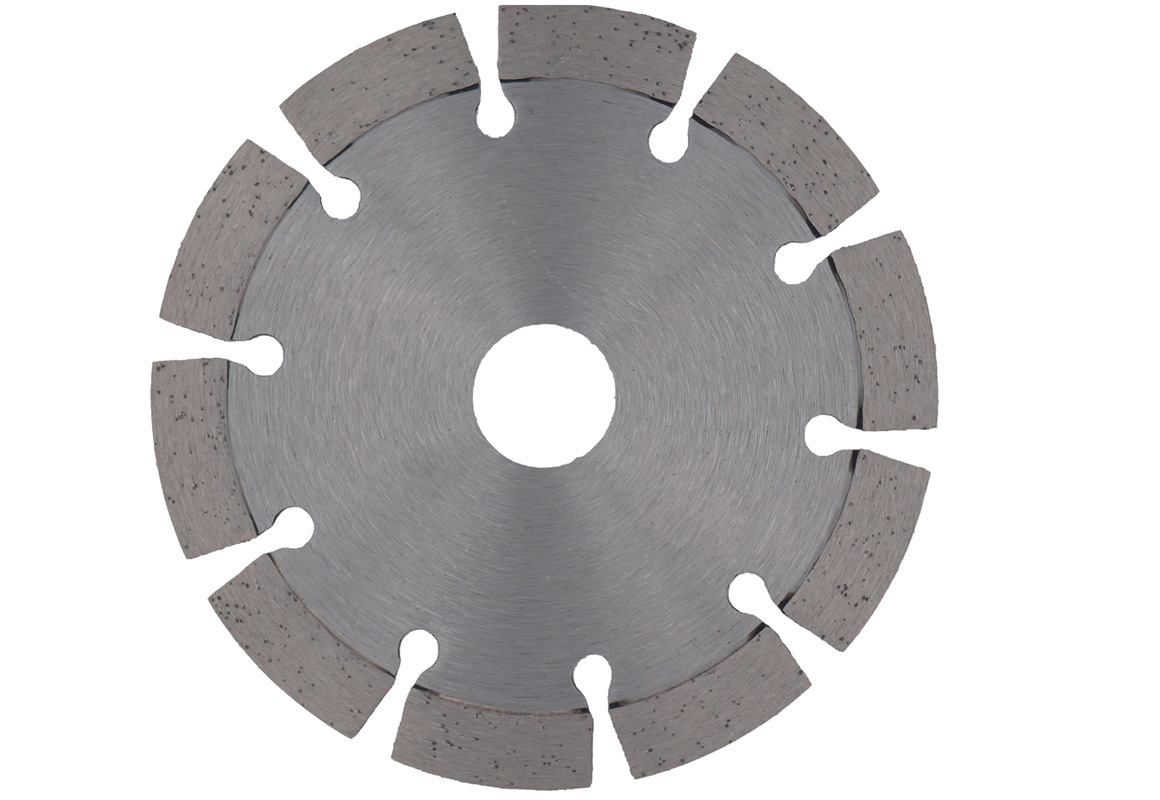

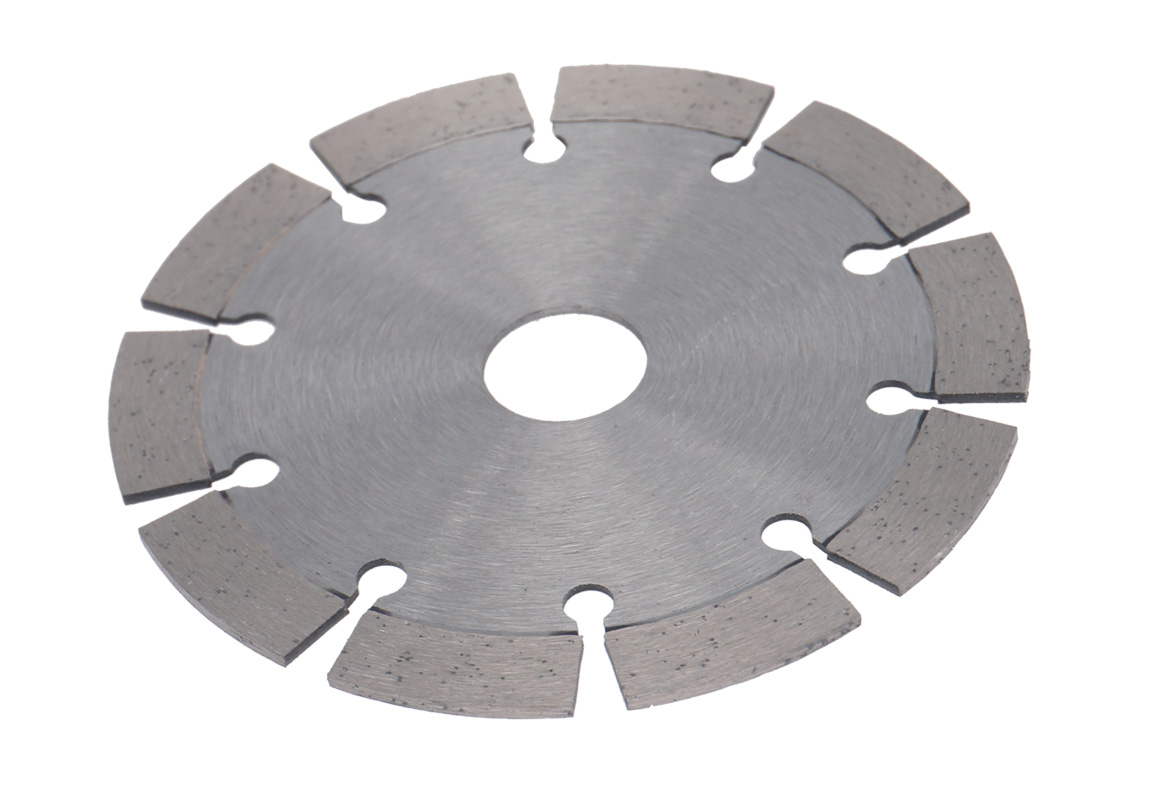

Laser weld saw blade
Product features:
1. Fast cutting speed and small cutting gap.
2. High cutting efficiency and no chipping.
3. Dry cutting available.
Cutting
Polish&Drill
+
Mining
Machines
Product description
The blade is used for processing stone and concrete materials the common processing method as follows: cutting edge of slab edging with bevel shape rough finishing the irregular surface and profile.1: The laser welded blade is mainly a split-tooth structure. The saw blade of this structure is very sharp in terms of cutting edge. It is suitable for cutting stone, concrete, asphalt and other materials, but it not recommend to cut materials that are easy to chip, such as microcrystalline stone. Ceramics and other materials.
2: The shape of the current welded saw blade segment has R, W and turbo type, etc.
3: Laser welded saw blade can be used for dry cutting or wet cutting.
4: Usually dry cutting laser welded saw blade have several round holes on the steel body for cooling.
5: SCT have special laser welded saw blades for stone, for concrete and asphalt respectively.
| Product name | Laser weld blade |
| Use for | Stone and concrete materials, etc |
| Technology | Laser weld techology |
| Inner hole | 20/22.23/25.4(mm),etc |
| Segment shape | Segment type, |
| OEM & ODM | Available |
| Supply Ability | 3,000 Pcs/Month |
| Factory | More than 17 years experience |
| Delivery time | 7~15 days after payment received |
Product specification
| Diameter(mm) | Segment Dimension(mm) | Bore/mm | Segment No. |
| D105 | 32*2.2*10 | 22.23 or 25.4 | 8 |
| D115 | 32*2.2*10 | 22.23 or 25.4 | 9 |
| D125 | 32*2.2*10 | 22.23 or 25.4 | 10 |
| D150 | 32*2.2*10 | 22.23 or 25.4 | 12 |
| D180 | 32*2.6*10 | 22.23 or 25.4 | 14 |
| D230 | 32*2.8*10 | 22.23 or 25.4 | 16 |
| D250 | 32*2.8*10 | 22.23 or 25.4 | 17 |
| D300 | 40*3.2*10 | 22.23 or 25.4 | 21 |
| D350 | 40*3.2*10 | 22.23 or 25.4 | 24 |
| D400 | 40*3.2*10 | 22.23 or 25.4 | 28 |
Other specifications on request available.
